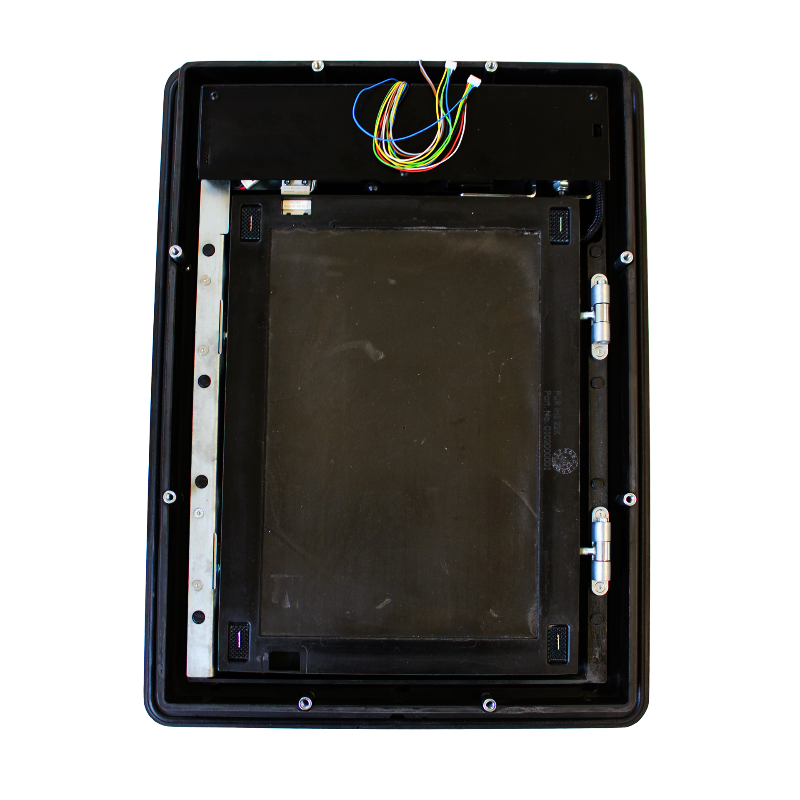

Outer frame - set - medium
Outer frame - set - medium
* Additional charges may apply for payments made abroad in CHF. Please contact your credit card issuer for more information.
The outer frame consists of all components of the pet door, except the inner frame and petWALK.control. Without a functioning inner frame, the outer frame cannot be used.
Outer frame set - medium includes
1x 0101000301 Outer flange - Medium - 03
1x 0106000411 Mechatronics lid - Medium - Acrylic
1x 0111000020 Insulation Mechatronics - Set
1x 0201000020 Drive module - Set
2x 0201020000 Drive module - spacer
1x 0202000000 Slip clutch set
1x 0203010100 Door leaf fitting - guide plate
1x 0203020200 Door leaf fitting - wedge
2x 0203050020 Door leaf fitting - locking part
1x 0205000121 Locking fitting - Set - Medium
1x 0205000520 Locking fitting - locking bush
1x 0206000620 Locking module - Set
2x 0208010000 Screws - Cylinder head screw M6 x 45 for drive motor
4x 0208020000 Screws - Cylinder head screw M6 x 20 for locking/drive module
4 0208030100 Screws - Cylinder head screw M3 x 5 locking motor/cable harness engine console
3x 0208030200 Screws - Cylinder head screw M3 x 16 for control board
8x 0208050000 Screws - Countersunk screw M4 x 12 for hinges M + locking rail M & L
8x 0208080000 Screws - Countersunk head sheet screw 3.9 x 19 TX DIN 7982C
8x 0208100100 Screws - Threaded rod + extension nut M6 x 50mm
3x 0208110100 Screws - lens head screw M4 x 8 black for mechatronic cover
2x 0208130000 screws - countersunk screw 3.5 x 16 TX 15 for door wedge
1x 0301000721 control board
1x 0303000100 Gear Motor - 12V Nidec 0225/GMPG - 406.185
1x 0303020100 Motor - Locking motor
1x 0305000100 battery - 12V 0.8Ah lead gel battery - JST
1x 0308000000 Reed Magnet - Meder M4
1x 0309010000 Wiring harness - engine console
1x 0309020000 Wiring harness - door leaf motor
1x 0309030000 Wiring harness - supply line
1x 0309050100 Wiring harness - connection - short
3x 0401050000 cable ties - 100 mm x 2.5 mm
128x 0405010000 Seals - Interior seal - Door leaf
122x 0405020000 Seals - External seal - Door leaf
9x 0406020300 Velcro fastener - RED - Duotec - 33 (pieces)
1x 0408020100 spacer bolt DA7-M4X18 SW7
2x 0408020200 spacer bolts DA7-M4X20 SW7
1x 0408040000 cable holder
1x 0601031000 pw1 + pw2 small parts box
1x 0602010220 petWALK - User Guide (DE, V 5.0)
1x 9102010421 pWM - door leaf - medium (assembly) - 04
