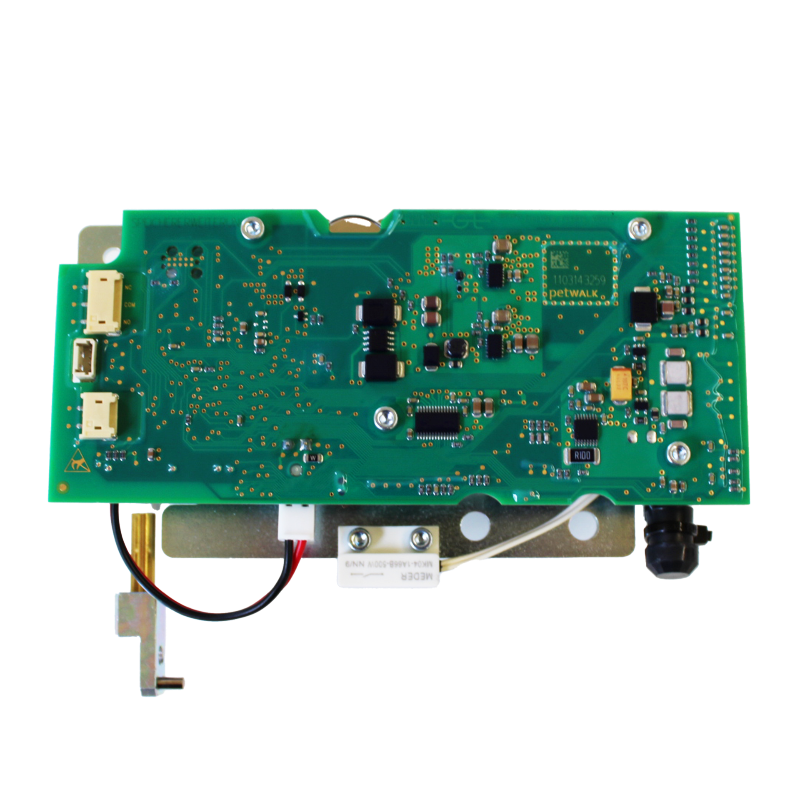

The locking module consists of the listed components and is responsible for locking and unlocking the door leaf. The control board is also located on this unit. Therefore, replacing the locking module can be considered if you still have an older locking system and want to upgrade the pet door's software. The wiring harness - motor console is the interior sensor, which is responsible for motion detection inside.

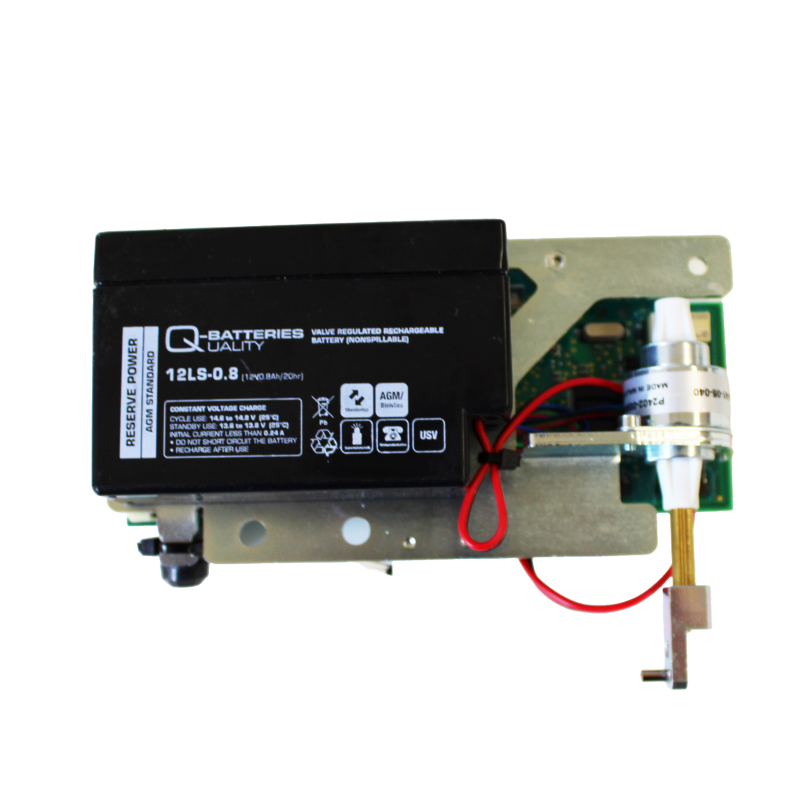

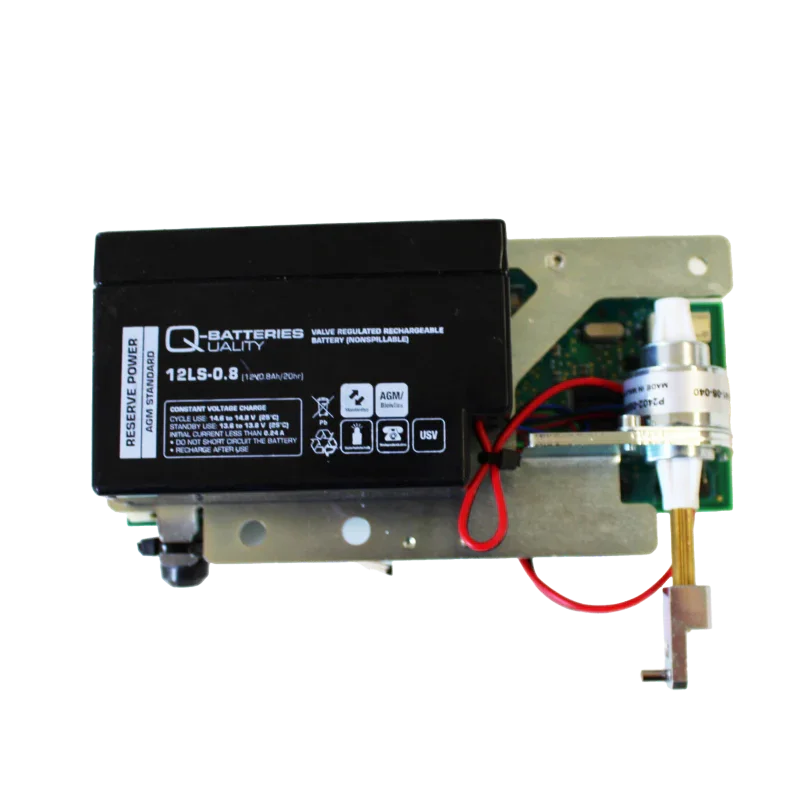

Locking module consisting of
1x 0205000520 Locking fitting - locking bush
1x 0206000620 Locking module - Set
4x 0208030100 Screws - Cylinder head screw M3 x 5 locking motor/cable harness
1x 0208100110 Threaded pins - worm screws 3x3
1x 0301000721 control board
1x 0303020100 Motor - Locking motor
1x 0305000100 battery - 12V 0.8Ah lead gel battery - JST
1x 0309010000 Wiring harness - engine console
1x 0401050000 cable tie - 100 mm x 2.5 mm
